Build Nested Pie Chart

Build Nested Pie Chart

Build Nested Pie Chart

In Prolaborate, users can build Nested Pie charts by any one of the following methods.

  • Build Nested Pie Chart using Designer Configuration

  • Build Nested Pie Chart using SQL Queries

  • Build Nested Pie Chart using reusable reports

Build Nested Pie Chart using Designer Configuration

Chart designer allows users to create charts with few simple clicks. With a chart designer, charts can be configured by simply selecting the filters. A MDG based sub-report can be added as well to see detailed information by clicking the dissections of the chart.

Chart designer allows users to view the query that was generated by the configurations made, which can be further be edited to create customized charts if required.

In Create Chart Widget, follow the below steps to create a Nested Pie chart using designer configuration.

Basic Details

Field

Description

Chart Name

Enter a suitable chart name

Choose Chart Type

Choose Nested Pie under chart type

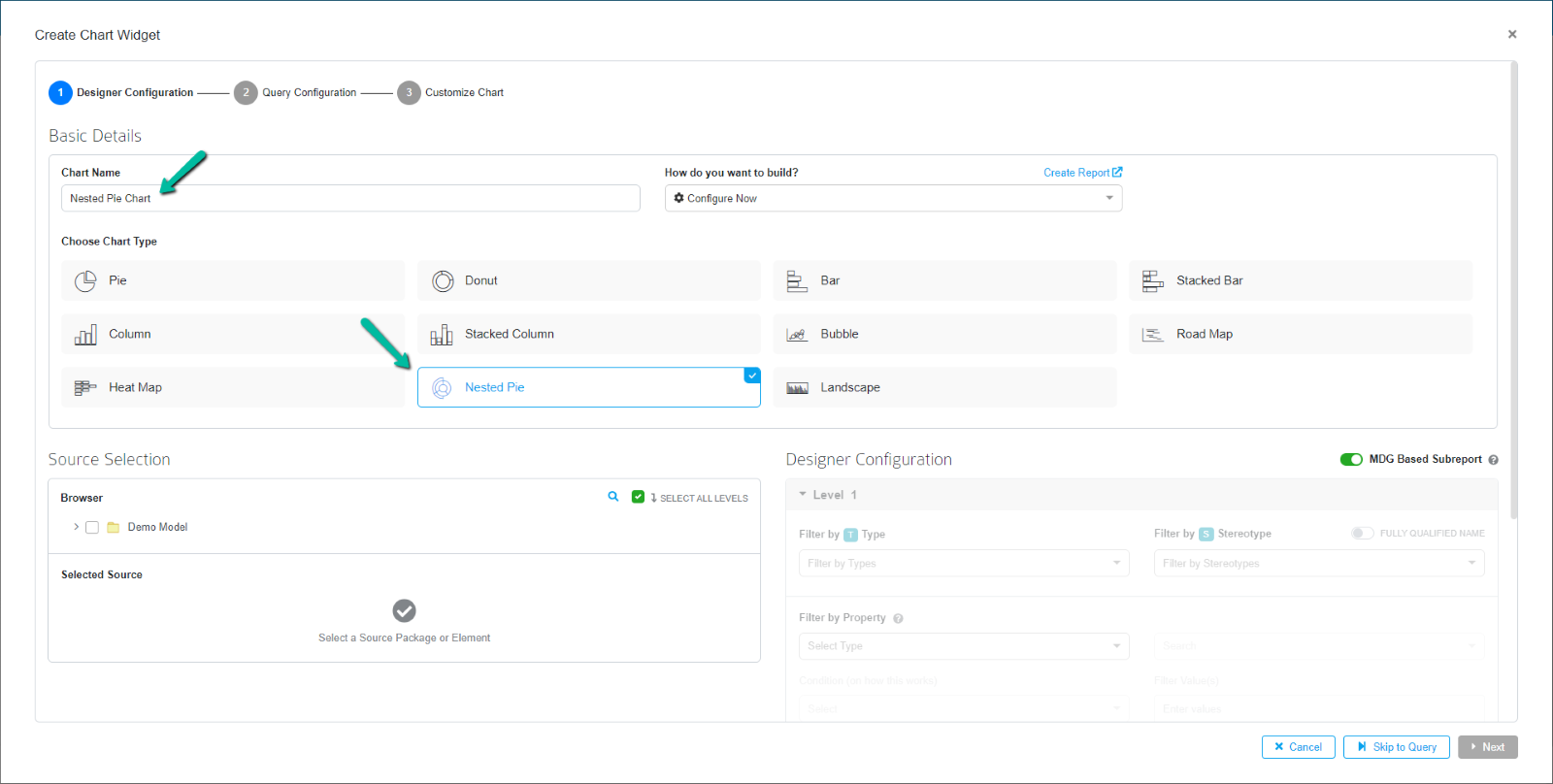

nestedpie-choose-chart

Source Selection

Field

Description

Browser

By clicking on this section, you will be able to view the package

Search Repository

To search for packages and elements. Click the Search icon to open the repository search page, where the user can search for elements by name, or the user can choose object type, type, and stereotype from the dropdown menu

Select All Levels

When Select All Levels is selected, the sub packages and elements within a package are selected automatically once the user selects the package





nestedpie-select-all-level

Designer Configuration

This section allows the user to select the configuration needed to create a chart.

Field

Description

MDG Based Subreport

Option enabled by default which allows users to see in-depth information when one clicks the dissections of the chart. It also allows users to filter the report data based on MDG stereotypes available. To know more, click here

Filter by Type



Select the Object type from the dropdown that is available from the package

Filter by Stereotype

Select the stereotype from the dropdown

Fully Qualified Name

By enabling this option, one can see the complete name of the Stereotype with its technology. If not enabled, you will be able to see only the name of the Stereotype

Filter By Property

You can filter the elements based on the basic properties i.e., Name, Stereotype, Status, Notes, etc, or tagged values

Condition (on how this works):

User can filter based on the conditions like IN, NOT IN from the tagged value and Basic Properties



Filter values:

Based on the above Tagged value or Basic Property, user can filter in detail by using the values from the Tagged value or basic property



Group Level by

Results of level 1 will be grouped based on the selection (basic properties or tagged value)

Color-code section based on

Sections will be color coded based on values of basic properties or tagged values selected. Colors will be applied to the chart either from Color Palette or MDG Color Configuration

Display Label

Display label for items will be appended based on values of basic properties or tagged value selected

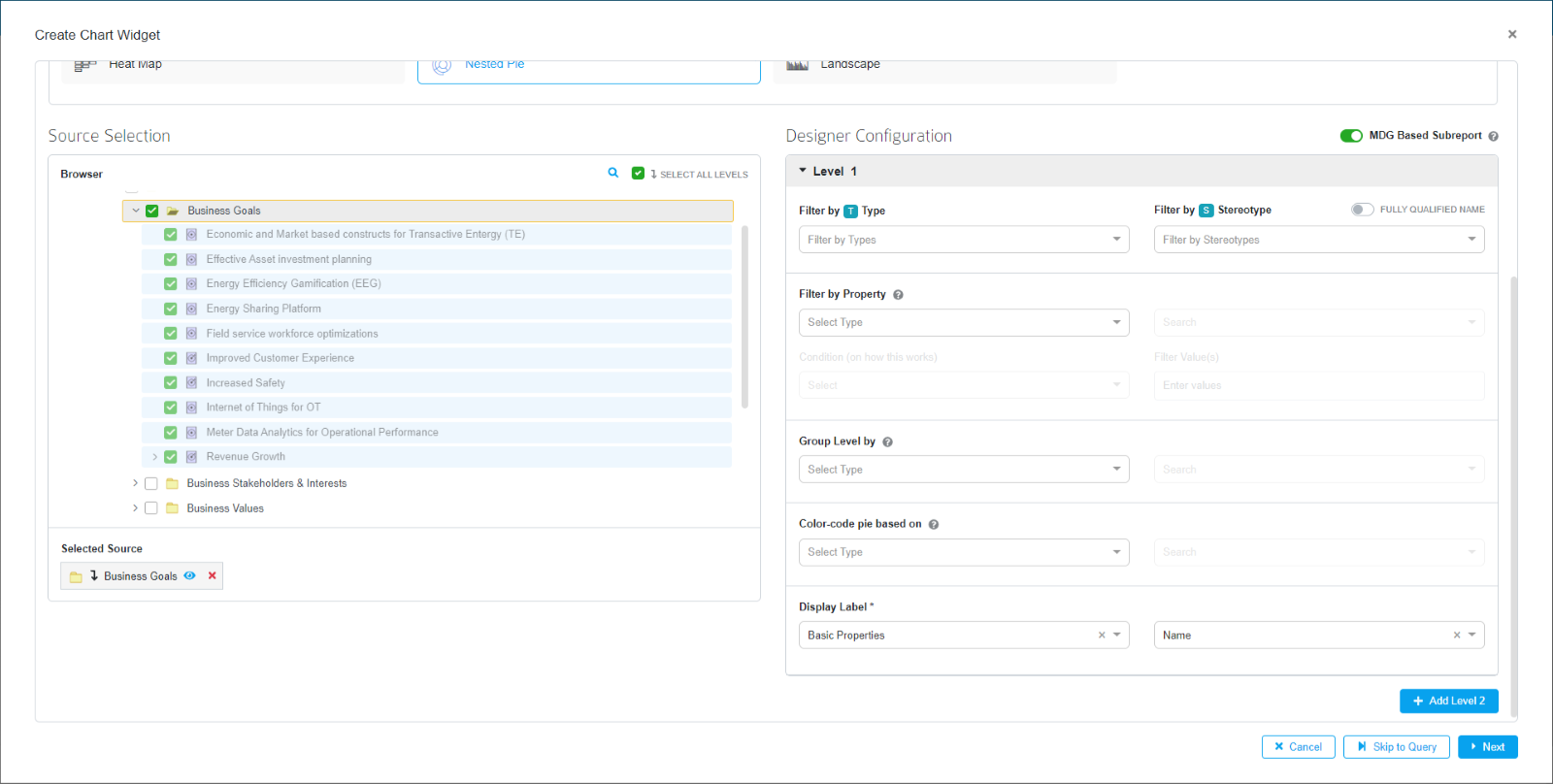

nestedpie-designer-level1

Click Add Level 2 to add the next level if required.

Field

Description

Choose connector direction

Choose the required connector direction from the dropdown

Choose Connector Type

It lists all the connector type from the elements filtered from level 1 and the connector direction shown in level 2. Choose the required connector type from the dropdown

Choose Connector Stereotype

Choose the required connector stereotype displayed based on the previous configurations from the dropdown

Show on Chart

Toggle this option to show/hide the level configured in the final output of the chart. This would come in handy when building charts with many levels and you want to control which levels need to be displayed

Delete

Click Delete icon to delete the level from the chart



Once the connector type or stereotype is selected, element filters and color code options are displayed. Configure them and follow the same steps to add the third level, if required.

Note: No more than three levels can be added to a multi-level chart (Heat Map, Nested Pie, Landscape)



nestedpie-add-level-2

After choosing all the filters click Next.

On the query configuration page, the queries for the designer configuration will be displayed. Users can either customize the query if required by enabling the Edit auto-generated query option or copy the query and use it later for customization.

Note: Enabling this option will result in loss of traceability between the selected designer configuration from the previous page and the query.



click-next-designer-method

Click Next to navigate to the chart settings page.

Users can customize the style and aesthetics of the chart on the Chart Settings page. We'll go over each feature in more detail later in this article. Now press the Save button.

Build Nested Pie Chart using SQL Queries

In Create Chart Widget, follow the below steps to create a Nested Pie chart using SQL Queries

Basic Details

Field

Description

Chart Name

Enter a suitable chart name

Choose Chart Type

Choose Nested Pie under chart type



Click Skip to Query option to go straight to the Query Configuration and build the chart by following the below steps.



nestedpie-skip-to-query

Query Configuration

This section captures the query required to create the Nested Pie chart.

Field

Description

View Sample

It displays a sample query with the option to see more

Query

Enter the query in the space provided based on requirements

Copy Query

Click this button to copy the entire query, with no manual selection required

Execute

Click on Execute to see the query's results

Condition to link previous level (In level 2 and 3)

Enter the required condition to link with the previous level

Show on Chart

Toggle this option to show/hide the level configured in the final output of the chart. This would come in handy when building charts with many levels and you want to control which levels need to be displayed

Delete

Click Delete icon to delete the level from the chart

MDG Based Subreport

Option enabled by default which allows users to see in-depth information when one clicks the dissections of the chart. It also allows users to filter the report data based on MDG stereotypes available. To know more, click here

Enable Clickable Query

By enabling this, the user can enter a clickable query and see the results when the respective section of the chart is clicked.

Note: This option is visible only when MDG Based Subreport is disabled

Set Placeholder Values

Displays the list of placeholders in the query, if there is any. Enter values for the respective placeholders and save them. To know more, click here

Save as Report

Save the configurations applied as a report in Report Configuration page where it can be reused again when a new chart is created. To know more, click here

Fetch Result Query

Click this button to fetch the result query

Result Query

This text box will display the result query upon clicking on the Fetch Result Query. In multi-level charts, it combines the queries from all the levels to a single query





nestedpie-querymethod

Click Next to navigate to the chart settings page.

Note:

  • To apply colors for individual tagged values that are defined using Color Palette Configuration, an alias ‘seriesproperty’ should be mentioned in the query

  • To apply colors for individual tagged values in a subgroup, an alias ‘groupnameproperty’ should be mentioned in the query

Users can customize the style and aesthetics of the chart on the Chart Settings page. We'll go over each feature in more detail later in this article. Now press the Save button.

Build Nested Pie Chart using Reports

From Prolaborate V4.2.0 and above, charts can be created by using predefined and reusable reports from Report Configuration. To know more about Report Configuration, click here..

The created reports from report configuration window can be applied when creating a new chart widget. After choosing the widget type, a popup will appear listing all the available reports.

For EA chart widget, it will display only the query type reports. The level column denotes the number of levels configured in the report.



nestedpie-choose-report-config-list

Report can also be selected by selecting Choose a Report from the dropdown How do you want to build? option.



nestedpie-choose from report

After selecting the report, choose the required chart type. The configuration will be automatically applied and click Next to navigate to the chart settings page.

If the selected report contains configurations of more than one level, then only the multi-level charts of type (Heat Map, Nested Pie, Landscape) will be available for selection.



nestedpie-select-chart

Users can customize the style and aesthetics of the chart on the Chart Settings page. We'll go over each feature in more detail later in this article. Now press the Save button.

Customize Nested Pie Chart

Chart Preview: This section will show a preview of the chart after the changes have been applied to it.

Refresh Chart Preview: This feature allows you to see a preview of the changes made in the chart settings on the current page. Changes made in the chart settings will be reflected in Chart Preview.



nestedpie-refresh-chart-preview

General



nestedpie-general-settings

Under the General section, users can modify the general chart settings based on their needs.

Field

Description

Legend

Toggling this option will allow the users to show or hide the legend in the chart

Float Legends

Enabling this option will display the legend within a box

Information on Hover

Enabling this option will display the Info tip of the Element

Legend Ellipsis

Long Legend will be displayed only to the extent permitted. Enabling this feature allows the user to see the entire legend when one hovers over it

Legends Position

By using this feature, users can place the legend either on the bottom or on the right side of the chart area



Color Range

Apply color to highlight a section of the chart based on the data it represents

Label

Enter a suitable text for the level labels

Color Pie

Enable this option to apply colors to a section of the chart either from Color Palette or MDG Color Configuration



Nested Pie Settings

Nested Pie settings allow you to change the font family and font size etc. Under Chart Settings, you can select Nested Pie Settings.

Field

Description

Show names of all Pie

Toggle this option to show/hide the names in all the Pie’s

Breadcrumb navigation bar

If enabled, a breadcrumb navigation bar will be shown as you click through

Font Family

Select the font to be applied for the chart's text and numbers. Select the desired font for the text and numbers by clicking the dropdown

Font Size

Specify the font size that will be used for the chart's text and numbers. Select the desired font size for the text and numbers by clicking the dropdown.



Click Save to save all the configurations.



nestedpie-nestedpie-settings

After clicking save, users can change the size of the widget on the following page by clicking on the bottom right corner of the widget. After resizing the widget's size, click Save.



nestedpie-dashboard-preview

The Nested Pie chart has been successfully configured and is now visible on the dashboard page. Users can click on a section to drill through the chart if children are configured.



nestedpie-preview

Users can see the List View and Back button when clicking through the multiple levels of the chart.



nestedpie-listview-back

Nested Pie Chart Widget Options

Once the chart widget is created, multiple options will be displayed when hovering on it.



nestedpie-chart-widget-options

Chart Settings

Chart Settings in the widget displays a list of option where users can temporarily modify the look of the chart, download or print the chart, etc.



nestedpie-chart-widget-chart-options

Show/Hide Legend

This option allows users to show/hide the legends in the chart widget.

Modify View

Modify view option opens the chart settings popup window where users can modify the look and aesthetics of the chart temporarily. This helps users to test the various changes before applying them permanently.



nestedpie-chart-modify-view



nestedpie-chart-modify-chart-settings

Show/Hide More Options

This option display additional options to print or download the chart widget as an image or PDF document. Click on Show More Options under chart settings and a hamburger icon will be displayed.



nestedpie-chart-show-more-options

Click on it to display multiple options to download the chart widget.



nestedpie-chart-download

View as Heat Map

This option temporarily changes the output of the nested pie chart to a heatmap chart.



nestedpie-chart-view-as-heatmap

View as Landscape

This option temporarily changes the output of the nested pie chart to a landscape chart.



nestedpie-chart-view-as-landscape

Share Widget

To share a widget, hover over a widget and click on the Share icon in the widget. Under the Copy Link to Share dropdown, select the type of link (Public, Private or Embed) to be shared.



nestedpie-chart-share-widget

Discuss Widget

Discussions can be initiated for a selected widget in the dashboard. To discuss, hover over a widget and click the Discuss icon to open the discussion tab to start a discussion.



nestedpie-chart-discuss

The other options in the widget includes refresh, view and maximize or minimize the widget respectively.
