Dynamic Charts – One Chart Multiple Reports

Dynamic Charts

Over the years, we have observed that our customers rely heavily on charts to visualize data. Furthermore, we have noticed that many users create multiple charts for the same object and each chart displays different data points.

Dynamic Charts will reduce such redundant efforts and will offer more intuitive reports for users to analyze information based on various attributes. Users can pick the data they would like to see on the go. This enhancement allows for greater flexibility and efficiency in data representation.

Dynamic Charts can be enabled in the following chart types:

  1. Pie

  1. Donut

  1. Bar (Regular and Stacked)

  1. Column (Regular and Stacked)

  1. Landscape charts representing multi-level hierarchical information

Prerequisites for a dynamic chart

  1. Prolaborate version should be 5.0 and above.

  1. Users must have access to the EA repository in Prolaborate.

  1. To create charts, the user must be part of a user group which has administrative access to dashboard provided by the admin.

  1. Make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.

  1. Modeling Language should be uploaded in Prolaborate.

Add a dynamic chart to dashboard

To create a dynamic chart in a dashboard, follow the below steps

Step 1: Create a Dashboard

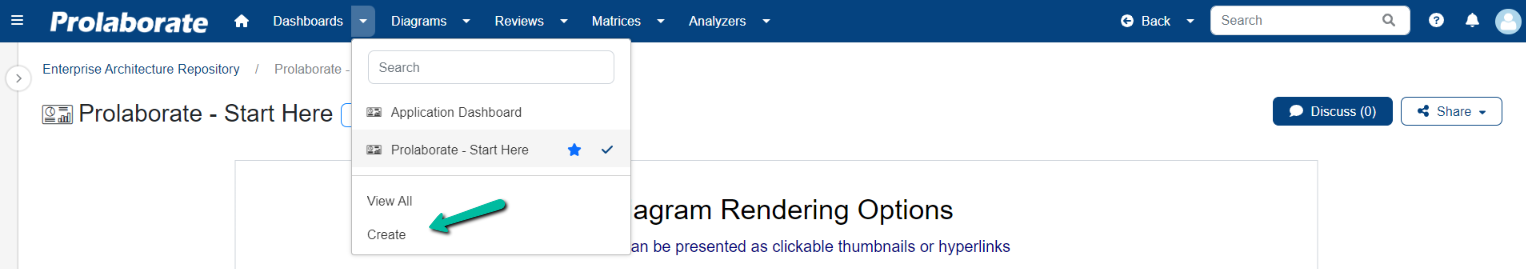

The first step is to create a dashboard which incorporates the charts as a widget. A new dashboard can be created by choosing Create from the dropdown in the header menu.



create-dashboard

Users can also select View all to navigate to the ‘Dashboards’ page and choose Create Dashboard.


create-dashboard-from-listing-page



Step 2: Add New Widget

To add a widget, click Add Widget Button > Add New by choosing any one of the options shown below.



add-widget


In Choose a Widget page, choose Charts under EA widgets and click Add Widget.



choose-chart-widget

Choose Chart Type

Dynamic Charts can be enabled in the following chart types:

  1. Pie

  1. Donut

  1. Bar (Regular and Stacked)

  1. Column (Regular and Stacked)

  1. Landscape

Choose a required chart type and proceed with the configuration.



choose-chart-types









Configure a Dynamic Pie Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.

Click here to read the complete prerequisite.

Click here to know how to add a chart.

To create a dynamic Pie chart,

  1. User must select the chart type as Pie

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property to build the chart



designer-configuration-pie

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in Build Chart Based On when configuring the chart.



pie-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-pie

Choose the required property to change the chart output.



changed-output-pie

To know more on how to create a usual Pie Chart, click here.

Configure a Dynamic Donut Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.



Click here to read the complete  prerequisite.

Click here to know how to add a chart.

To create a dynamic Donut chart,

  1. User must select the chart type as Donut

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property to build the chart





designer-configuration-donut

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in Build Chart Based On when configuring the chart.



donut-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-donut

Choose the required property to change the chart output.



changed-output-donut

To know more on how to create a usual Donut Chart, click here.

Configure a Dynamic Bar Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.



Click here to read the complete  prerequisite.

Click here to know how to add a chart.

To create a dynamic Bar chart,

  1. User must select the chart type as Bar

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property in Y-Axis to build the chart



designer-configuration-bar

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in Y-Axis when configuring the chart.



bar-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-bar

Choose the required property to change the chart output.



changed-output-bar

To know more on how to create a usual Bar Chart, click here.

Configure a Dynamic Stacked Bar Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.



Click here to read the complete prerequisite.

Click here to know how to add a chart.

To create a dynamic Stacked Bar chart,

  1. User must select the chart type as Stacked Bar

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property in Y-Axis to build the chart





designer-configuration-stacked-bar

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in Y-Axis when configuring the chart.



stacked-bar-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-stacked-bar

Choose the required property to change the chart output.



changed-output-stacked-bar

To know more on how to create a usual Stacked Bar Chart, click here.

Configure a Dynamic Column Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.

Click here to read the complete prerequisite.

Click here to know how to add a chart.

To create a dynamic Column chart,

  1. User must select the chart type as Column

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property in X-Axis to build the chart





designer-configuration-column

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in X-Axis when configuring the chart.



column-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-column

Choose the required property to change the chart output.



changed-output-column

To know more on how to create a usual Column Chart, click here.

Configure a Dynamic Stacked Column Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.

Click here to read the complete prerequisite.

Click here to know how to add a chart.

To create a dynamic Stacked Column chart,

  1. User must select the chart type as Stacked Column

  1. Select the Source

  1. Select a Stereotype

  1. Select a tagged value/property in X-Axis to build the chart





designer-configuration-stacked-column

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in X-Axis when configuring the chart.



stacked-column-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-stacked-column

Choose the required property to change the chart output.



changed-output-stacked-column

To know more on how to create a usual Stacked Column Chart, click here.

Configure a Dynamic Landscape Chart

Note: The dynamic chart is enabled based on a specific configuration so please make sure the chart is configured using designer and not more than one stereotype is selected in ‘Specify Stereotype’ field.

Click here to read the complete prerequisite.

Click here to know how to add a chart.

To create a dynamic Landscape chart,

  1. User must select the chart type as Landscape

  1. Select the Source

  1. Select a Stereotype (not more than one)

  1. Select a tagged value/property in color-code blocks based on to build the chart

Note: In the dynamic landscape chart, the colors of the last level change based on the selected tagged value. The landscape chart supports up to 3 levels, where the third level is considered the last when three levels are configured, the second level considered the last when two levels are configured, and the first level considered the last when one level is configured.





designer-configuration-landscape



last-level

Save the chart and open the dashboard to view it. A dropdown field will be displayed with the property selected in Color-code block based on when configuring the chart.



landscape-chart

Clicking the dropdown lists all the basic properties (Name, Author, etc.,) and tagged values configured for the stereotype in the Form Designer.



properties-dropdown-landscape

Choose the required property to change the chart output.



changed-output-landscape

To know more on how to create a usual Landscape Chart, click here.
