Review Enterprise Architect Models

Prolaborate lets you and your teams review your EA deliverables easily without the need to create documents. Read on to know about the various powerful features of Prolaborate Reviews.

This user guide has been divided into two sections based on user workflows. First, we will focus on the workflows of Review Moderators who create and monitor the progress, and then, we will move on to the workflows of Review Contributors i.e., Reviewers or Approvers.

Prerequisite

User must have access to EA Repository in Prolaborate.

To create a Review, the user should be part of User Group with Review Access.

To configure global review settings, the user must have Prolaborate admin access.

Review Moderator Workflows

Configure Global Review Settings

These settings apply to all the reviews created in Prolaborate. Some settings can be edited later at a review level.

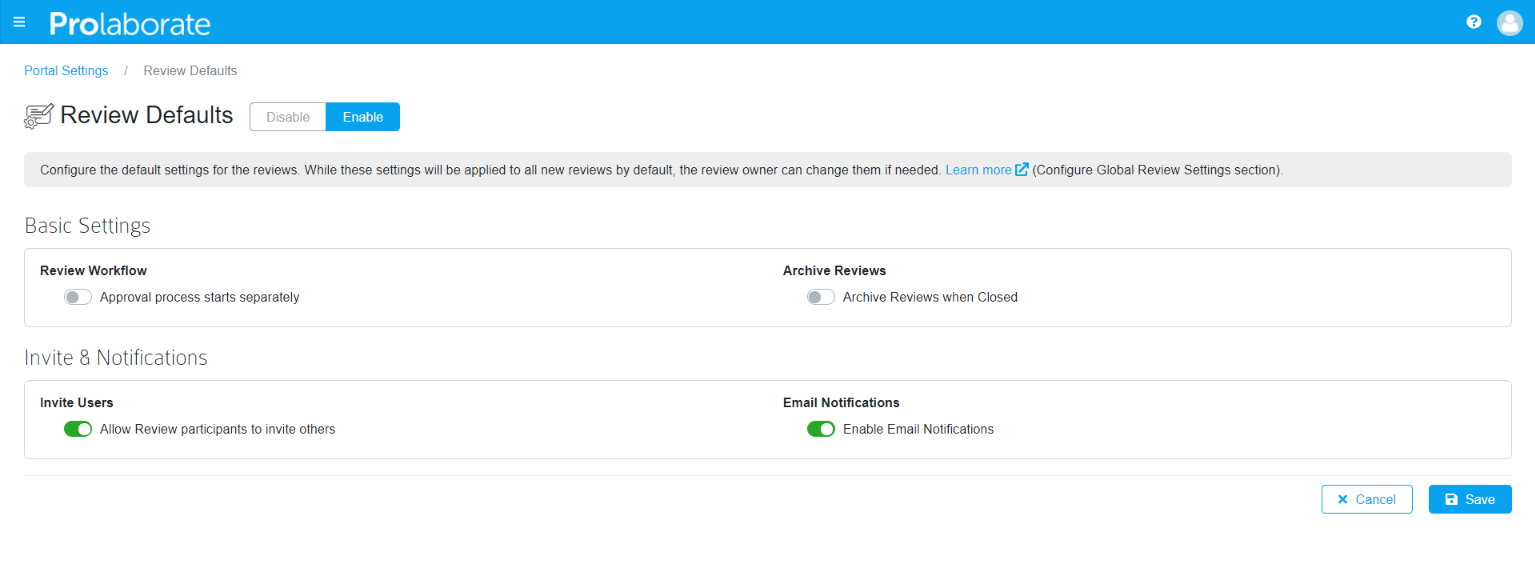

Click on Menu > Review Defaults to go to the settings page. By default, it will be enabled.

The following table explains the functionality of each setting:

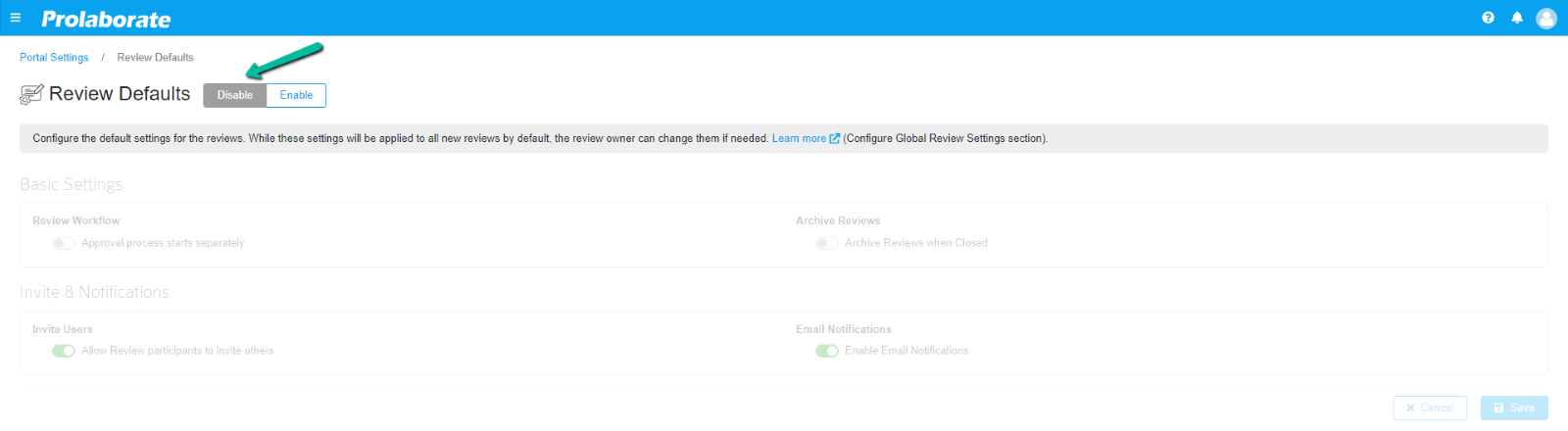

Disable Review Default Settings

Admin can disable the Review Default Settings applied in the overall application by simply disabling the Review Defaults option.

Disable-review

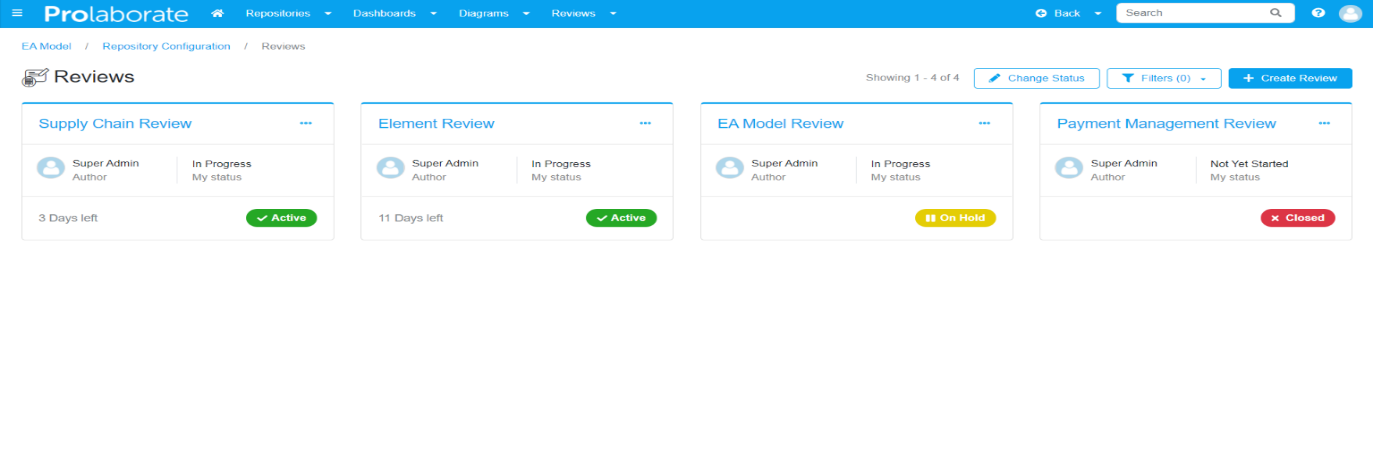

View all Reviews

The reviews page list all reviews that are created by user and that need a review by user. From reviews page users can perform review management actions such as creating a review discussion, adding or deleting review items, archiving a review, add reviewers such as moderator, approver, etc.

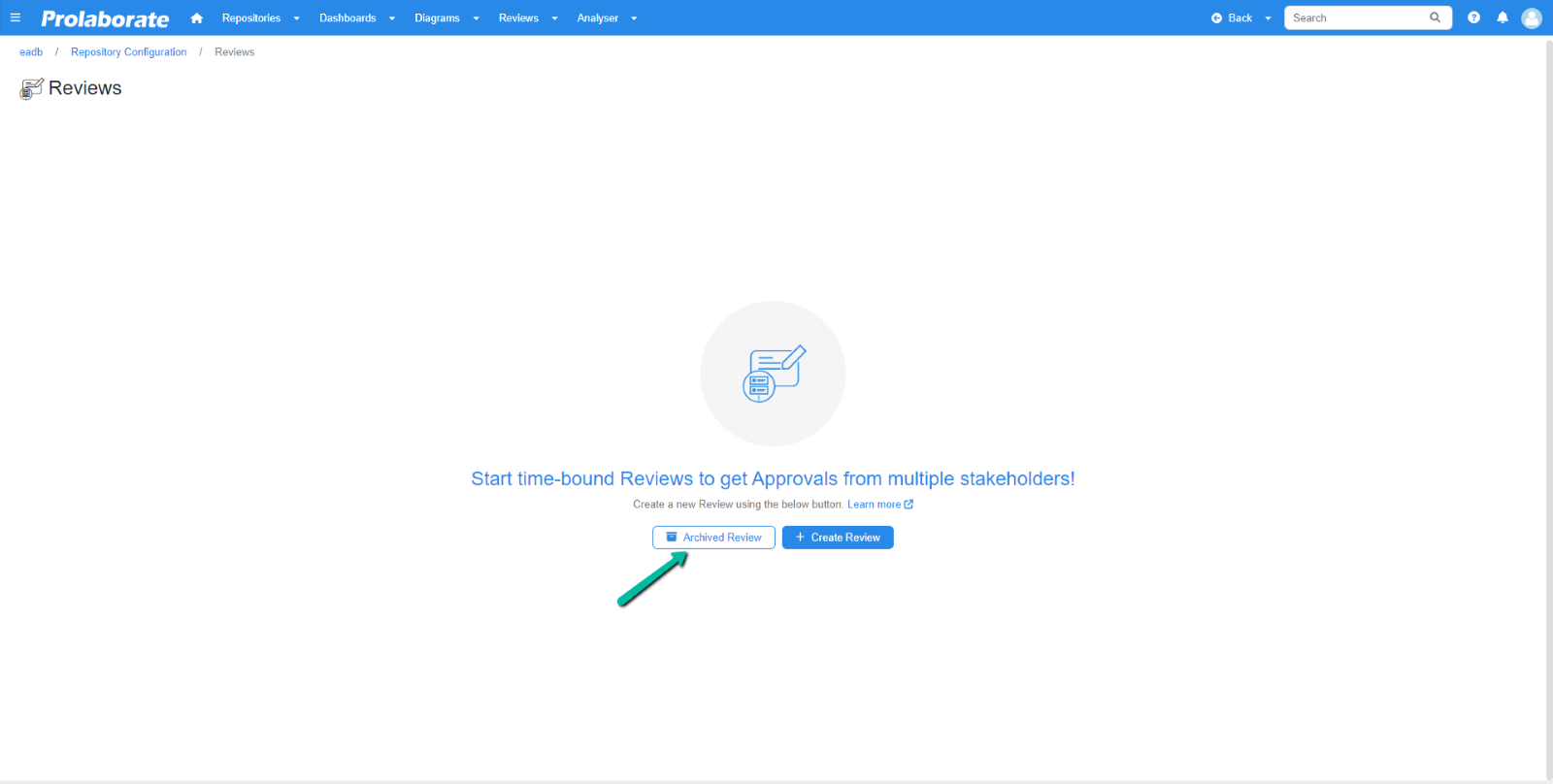

View Archived Reviews

From Prolaborate V4.4.2 onwards, an option to access achieved reviews is newly introduced. When all the reviews are in the archived state, users can click Archived Reviews in the landing page which displays all the archived reviews. User can view and reopen them, if the need arises.

Archived-reviews

Create a Review

To create a review, click on Menu > Reviews or click on Reviews in the menu tab.

Note: In Reviews page, Create Review button will be displayed by default when no reviews available.

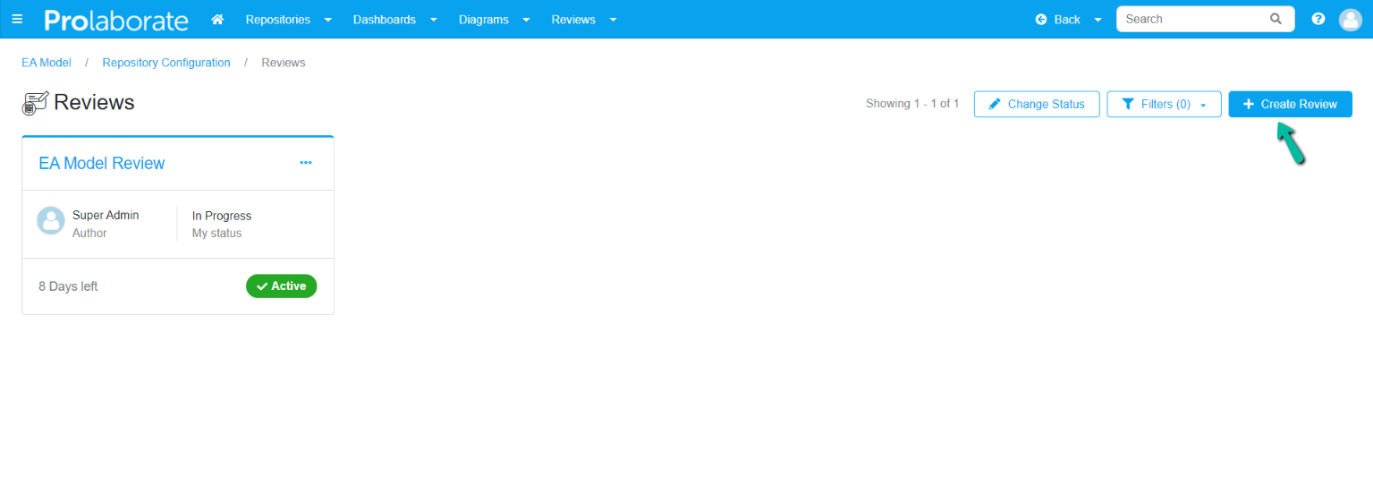

If there are any reviews, they will appear on the reviews page. Click the Create Review button to create a new one.

Following are the steps involved in creating a review.

Enter Review Details

As a first step in ‘Enter Review Details’ page, provide the details of the review.

After entering the review details, click Next to continue creating the review, Save and Exit to save the filled information and exit from review creation process or Cancel to exit review creation process without saving the filled information.

On clicking on the Next, you will land on the Select Review Items wizard.

Select Review Items

On this page, select the Packages, Diagrams, and Elements from EA models which need to be get reviewed.

Select the items from the Repository Browser.

Enable the Select All Levels check box to select a package and all the packages, diagrams, and elements under it.

After choosing the review item click on Next.

Add Contributors

On clicking on the Next, you will land on the Add Contributors page.

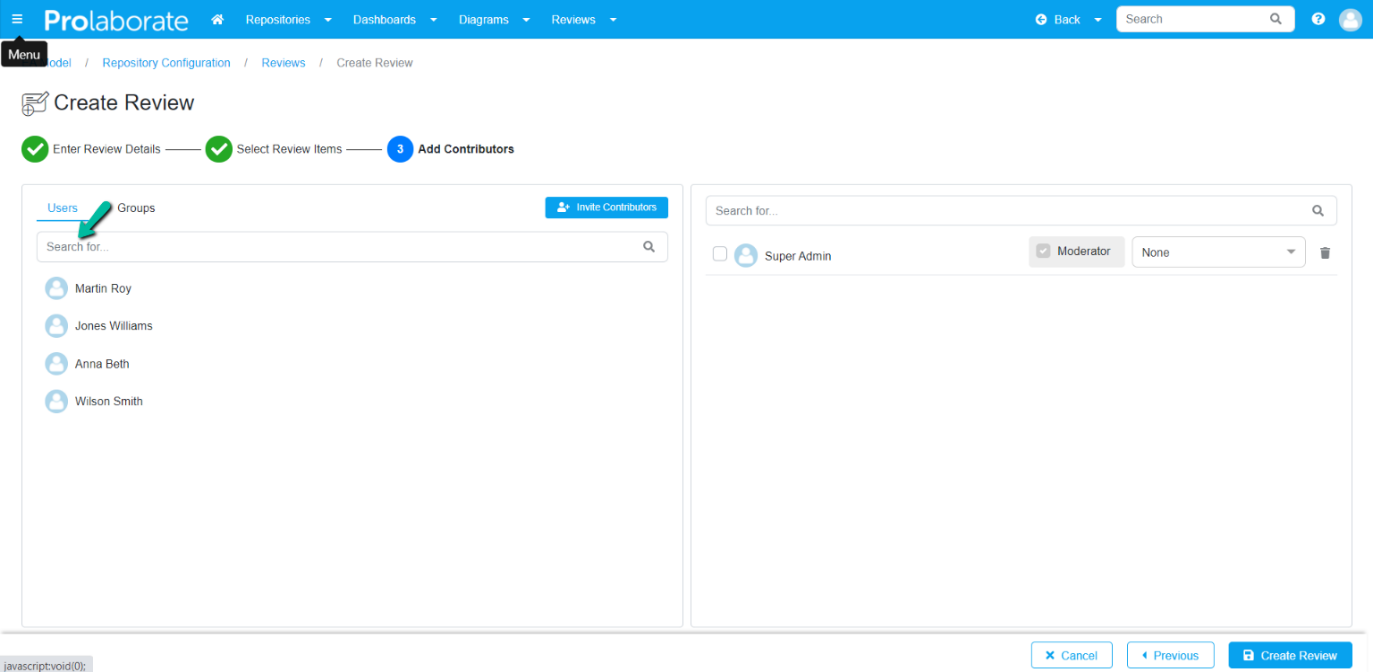

Search Users

Use search option to search user or user groups to add them to the review as reviewers or approvers or as moderators.

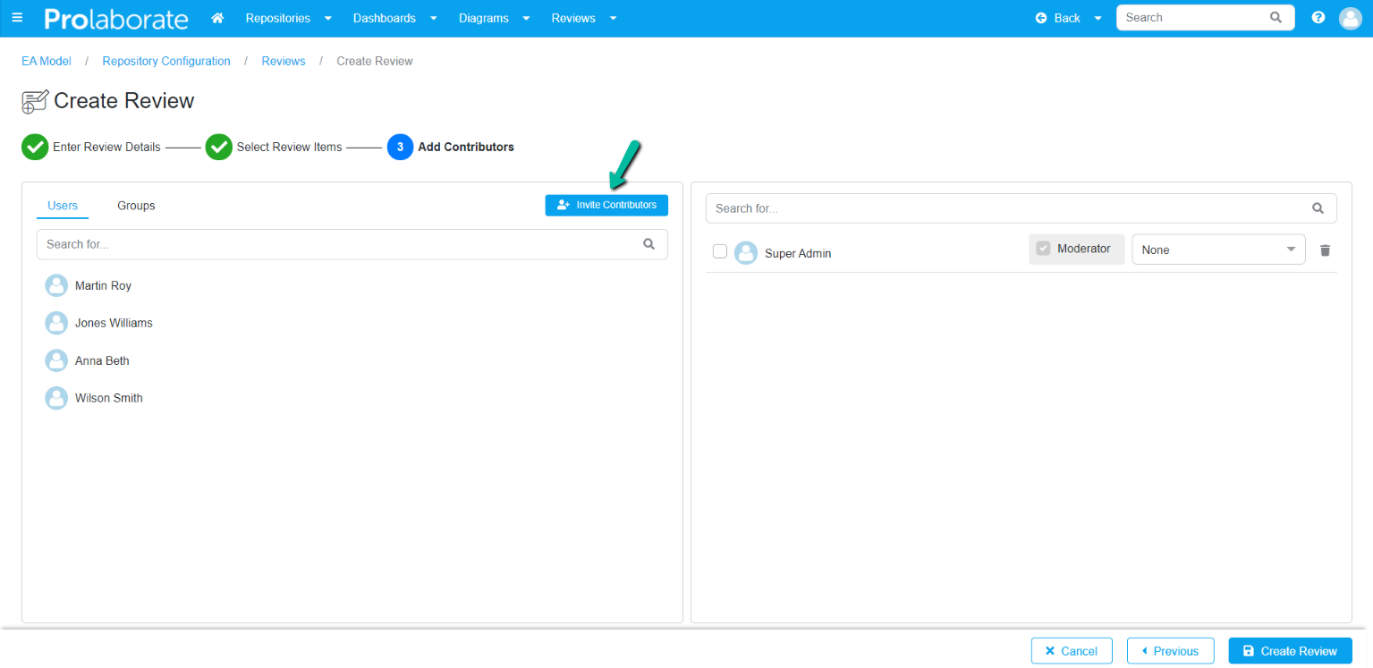

Invite Contributors

Click on Invite Contributors to invite non-Prolaborate users by email as contributors to the review. The invited user is automatically added to Users list.

Assign Roles to Contributors

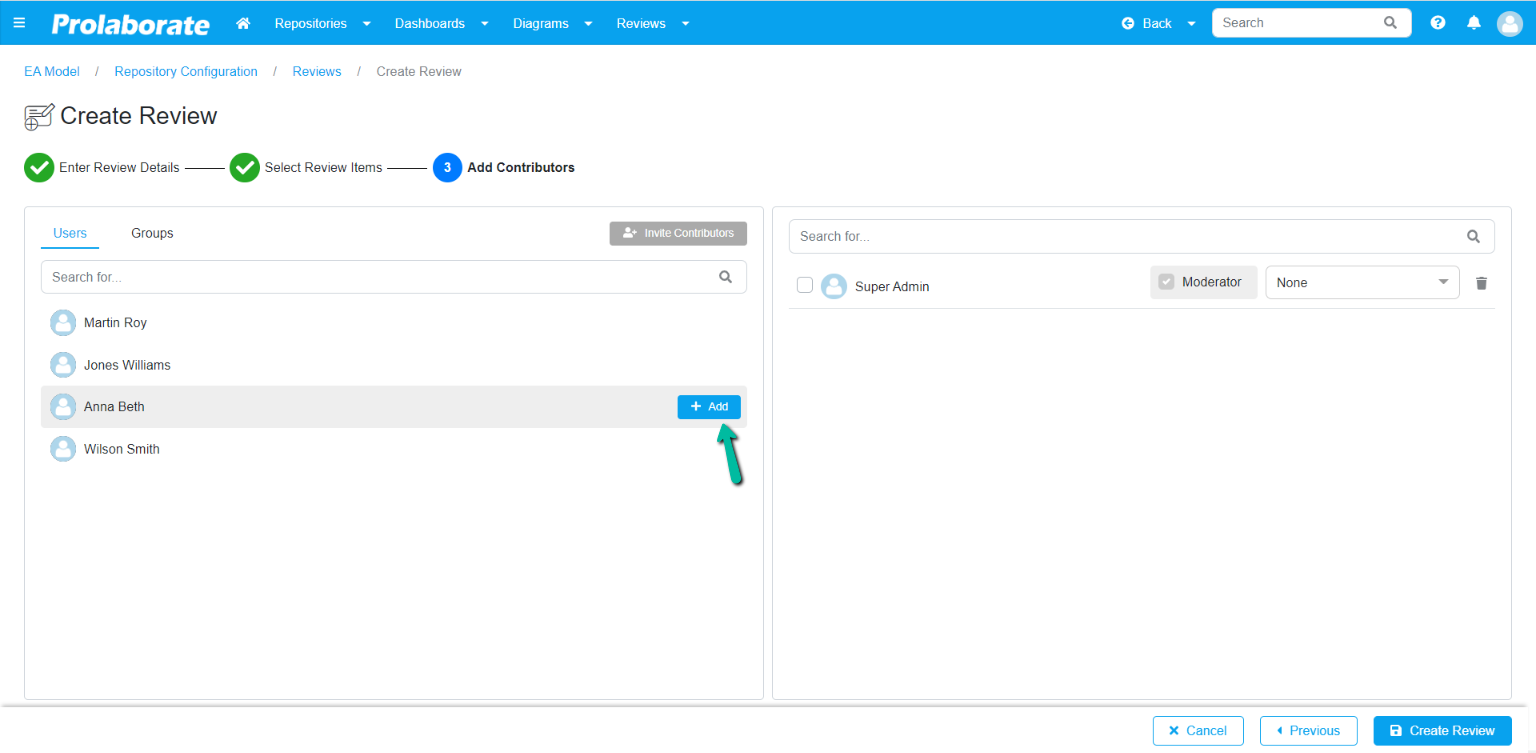

Select User

To assign a role, hover on the user’s name and click Add button.

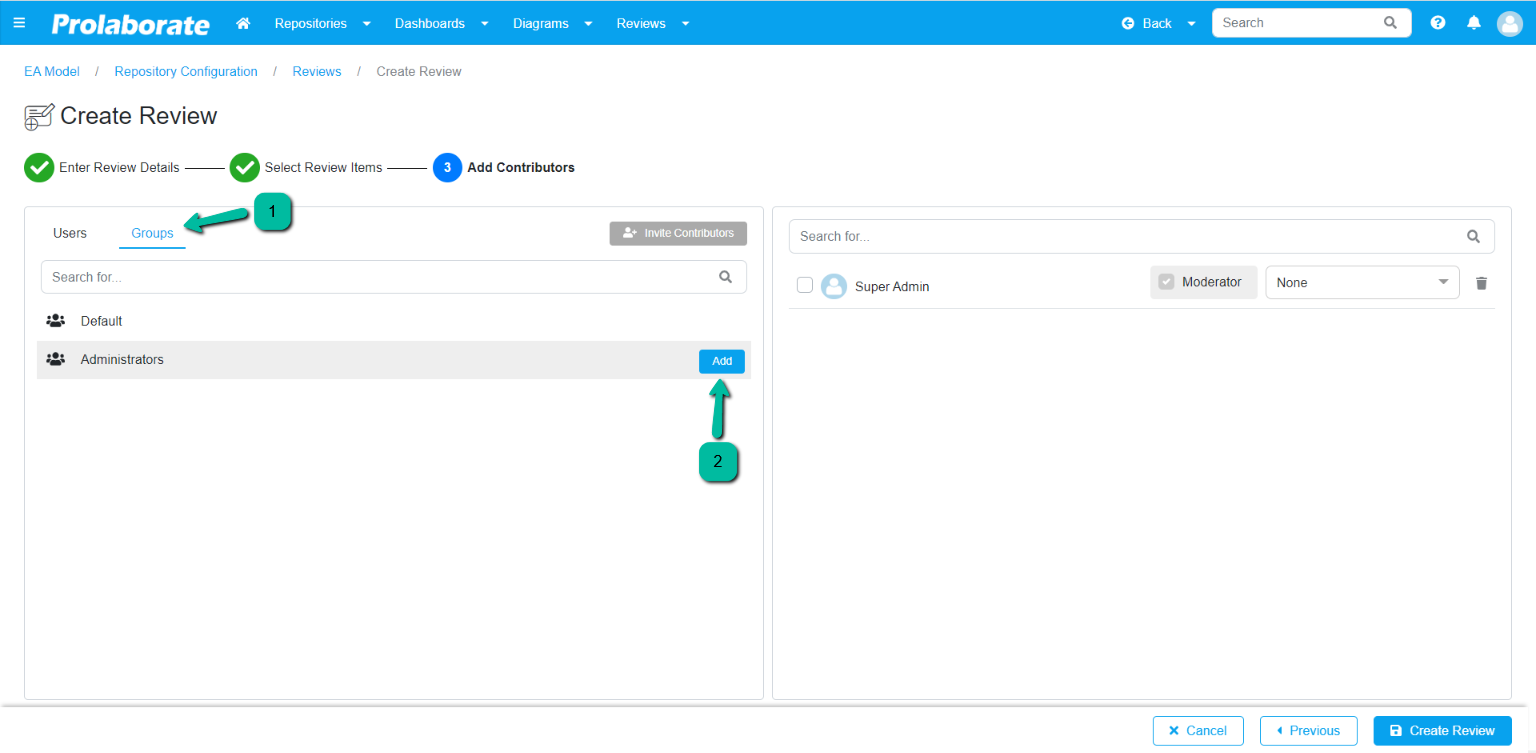

Select User Groups

To assign a role to user groups, select Groups and hover on the user group name and then click Add button.

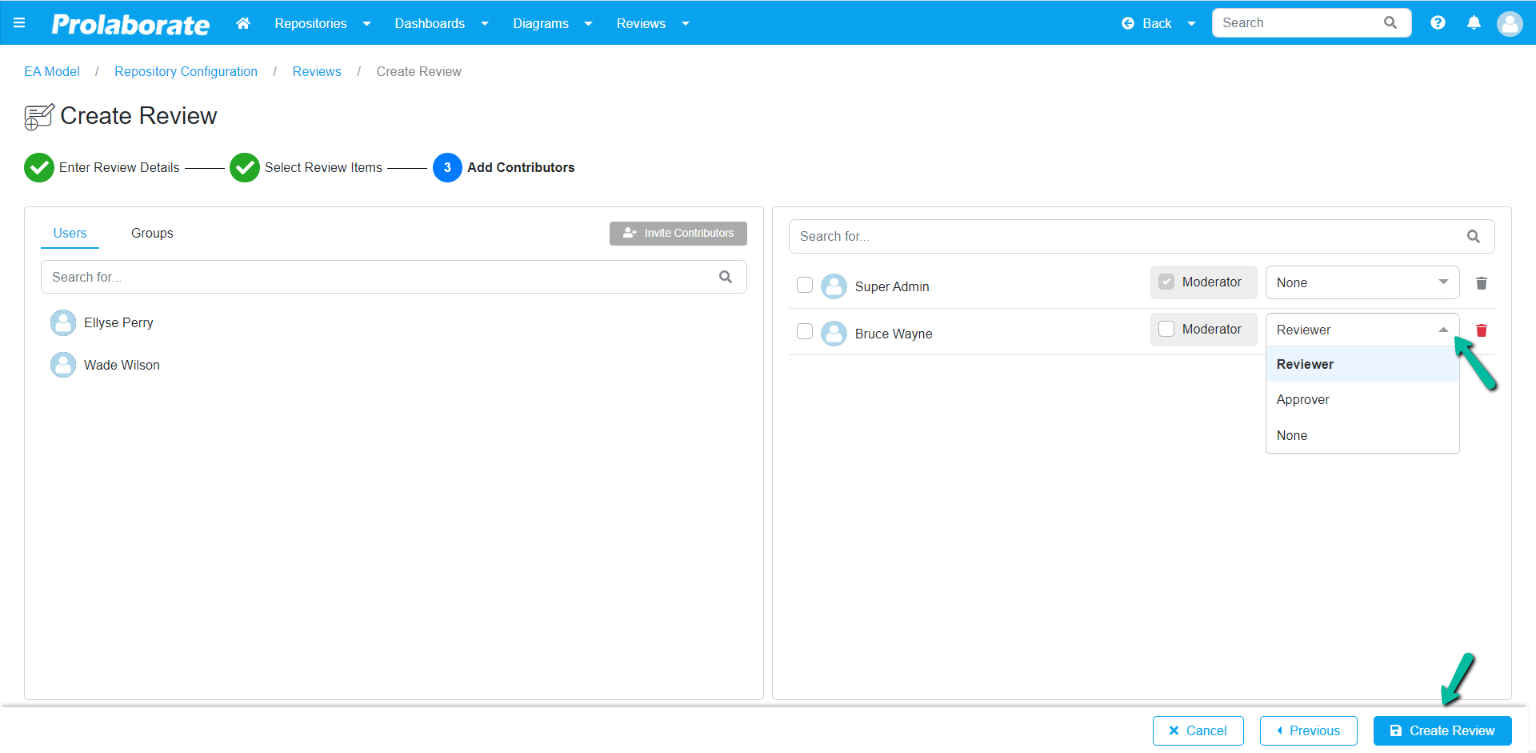

Assign Roles to User or User Groups

Assign roles to the user/user groups as contributors such as moderator, reviewer, or approver.

From the previous step user or user groups are selected, Now click the dropdown box to assign a role for the user or user groups and click Create Review.

Bulk Change Roles

To make bulk changes to the roles, select the users or user groups, click Change Status and select the role and then click on Create Review.

Review Created

After assigning the role, click on Create Review and the review will be created.

Open Review – Displays the review summary page, which includes all the content to be reviewed.

Open Reviews List – Navigates to the Reviews page, where all the reviews are listed.

Review Status

Review status is a state that is set automatically by Prolaborate based on the certain conditions.

Change Review Status

Review status is a state that is set automatically by Prolaborate based on the certain conditions however the status can be modified based on preference by User.

Filters

Filters allow for a quick look at reviews based on the status, author of the review, reviews that are archived, etc. By default, the reviews page shows reviews that are active, incomplete, yet to start, review created by different authors. Click on Filters, choose the required status and Apply the filter.

Review Details Page

With insight into the review details page, review contributors such as moderator, reviewer, and approver will be able to perform their review actions with ease.

When you click on a specific review, you will be taken to the review detail page. The review detail page provides comprehensive information about the review, including the review start and end date, review summary, review discussion, review stats, review contents such as packages, diagrams, etc, as well as the feature set to approve or reject review items.

Choose Role

When a user has multiple roles in review, such as moderator and approver, they can switch between them by selecting the option, and the corresponding dashboard for the role will be displayed.

The action button is available at the top right side of the review page (next to the Discuss button) based on the role, through which multiple actions such as Mark All as Approved, Mark All as Reviewed, etc can be performed based on their role. In the following section, we will look at all of the actions.

All Review Contents

This tab displays the overall view of the contents that must be reviewed.

Diagrams

This tab displays all of the diagrams that need to be reviewed, as well as the total number of diagrams. It also allows the users to perform other functions such as search diagrams, filter diagrams, creating discussion, view properties of diagrams, etc.

Stats

The Stats tab gives the pictorial representation of the review stats such as the status of review discussion, the priority of review discussions, approval status, review completion status, etc. It also covers the status of contributors, the status of review items, etc.

Items

This tab shows all the items that need to be reviewed, including the item count. The review items can be viewed in a tree or list view, and by hovering your mouse over an item, you can approve or reject it to start a discussion about a specific review item. To filter items, click on the dropdown and then on the discussion icon.

Discussions

Create discussions about the review, items, or diagrams directly from the review detail page.

Edit Review

Edit the review directly from the review detail page. To edit the review, go to the top right corner of the review page and click the action button (next to the Discuss button), then select Edit Review.

Invite Approver/Reviewer

Based on your role in the review, invite an approver or reviewer. To invite an approver or reviewer, go to the top right corner of the review page and click the action button (next to the Discuss button), then select Invite Approvers.

Summary

As the name implies, this feature gives a quick view of the review summary.

Get Notified about Reviews

Enabling email notifications is required in order to be notified about the review. Review contributors will be notified when they are invited to review, when their role changes, or when review items are deleted or added.

Invite Peers to Review Artifacts

To invite a user to a review as an approver or reviewer, select Invite Approver from the Mark All as Approved dropdown.

Under the section Enter Email ID, enter the email address of the collaborator you want to invite for the review.

As you begin entering the email address, a list of previously registered collaborator email address will appear. Select the email address of the person you want to invite.

When the collaborator email address is manually typed in Prolaborate, whether it is an existing email address or one that does not exist, press Enter on the keyboard after entering the email address.

The system will not recognise the email address if you press the Invite button without pressing the Enter key on the keyboard.

Add as many email addresses as you want to invite multiple collaborators at once.

Enter a brief note in the Email Message field after entering the email address.

To receive a copy of the invitation, click on Send me a copy checkbox.

On entering the details click on Invite.

Once the collaborators are invited, they will receive an email notification.

Participate in Reviews as Contributors

When the user receives the email notification, they can begin collaborating by clicking the link provided in the email notification.

If the collaborator is not already a Prolaborate user, they must register using the link provided in the email notification.

On enrolling themselves in the registration form collaborator will be able to log in and collaborate in the review.
